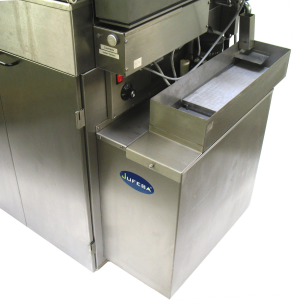

Fat filter Unit Series FF
the ideal supplement of Doughnut-Fryers
Series TK / WW / WW-A / WW-AT / WW2-AT
Substantial extension of the fat-lifetime
Ease of use at any time through the fixed mounted device as well as a simple, quick and safe fat cleaning process with just one handgrip.
Through the convenient daily cleaning the quality of the doughnuts the ideal supplement of Doughnut-Fryers Series TK / WW / WW-A / WW-AT /WW2-AT will be improved and the fat life cycle will be extended significantly.
Version
Typ FF – fix mounted
Typ FM – mobil on casters
Standard Features
The unit made of stainless steel contains an inlet connec on directly under the fat drain valve of the frying kettle, a filter compartment for special filter mat, a fat storage tank for the entire volume of fat, a fat pump with direct recoil pipe into the frying kettle, connection cable with switch and plug to be stuck into socket of heating case.
The Fat Filter System can also be upgraded to existing equipment at any time.
| Technical Specification: | FF-05 | FF-10 | FF-20 | FF-X20 |
| Dimensions(mm) W/D/H | 280/680/770 | 315/680/770 | 350/680/770 | 485/680/770 |
| Capacity (l) | 80 | 90 | 100 | 140 |
| Filter Size (mm) | 400 x 190 | 400 x 222 | 400 x 255 | 400 x 255 |
| Total Input (kW/V) | 0,1/230 | 0,1/230 | 0,1/230 | 0,1/230 |
Specifications subject to change without notice
